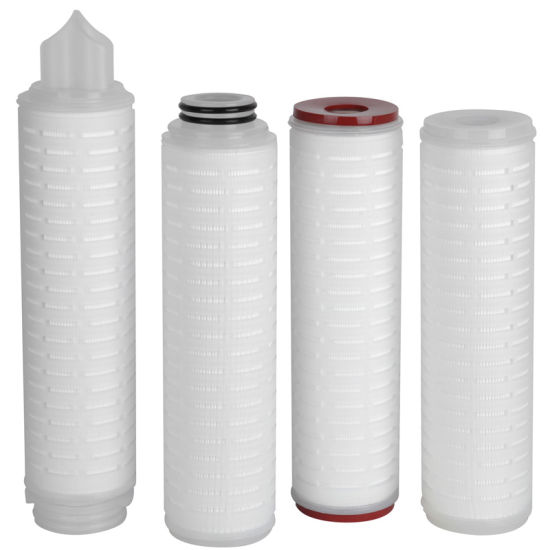

100% food grade China made PP pleated membrane filter cartridge with 226 Fin endcap at 5.0micron
- Type£ºFilter Cartridge
- Model£º226/Fin
- Product Description£ºThe Polypropylene pleated filter cartridge or PP Filter Cartridge is constructed with a high surface area melt-blown polypropylene media for low initial pressure drop, high dirt holding capacity, and
Introduction:
100% food grade China made PP pleated membrane filter cartridge with 226 Fin endcap at 5.0micron
Descriptions & Product Specifications:
|
Media material: |
Polypropylene membrane / Folded PP membrane |
|
Support Layer: |
Polypropylene |
|
Micron size: |
0.1um, 0.2um, 0.22um, 0.45um, 0.65um, 1.0um, 3.0um, 5.0um,10.0um, 20.0um, 50.0um, 100um, |
|
Length: |
5inch, 9.75inch, 10inch, 20inch, 30inch,40inch,50inch, 60inch, 5¡±,9.75¡±,10¡±,20¡±,30¡±,40¡±,50¡±,60¡± |
|
OD: |
Outer Diameter: 68-69 mm |
|
Filtration Area: |
0.65 m2 per 10¡å |
|
Inner Core: |
Reinforced Polypropylene/ Stainless Steel |
|
Outer Cage / End Cap |
Reinforced Polypropylene/ Stainless Steel Insert |
|
Adapter: |
DOE, double open end, SOE, Single open end, 222/Fin, 222/Flat, 226/Fin, 226/Flat, 215/Fin, 215/Flat 222 O-rings/bayonet, 226 O-rings/ spear |
|
Gasket / O-ring: |
Silicone, EPDM, Viton, PTFE, Nitrile, NBR, Teflon |
|
Normal Operating Temprature: |
Up to 65¡ãC(149¡ãF) |
|
Max. Operating Temprature |
80¡ãC( 176¡ãF) at ^ ¡Ü 1.0 bar (14.5 psi) |
|
Normal Flow Direction |
4.2 Bar (60.9 psi) at 25¡ãC(77¡ãF) |
|
Reverse Flow Direction |
2.1 Bar (30.5psi) at 25¡ãC(77¡ãF) |
|
PH Value Compatibility |
2-13 |
|
Filtration rate: |
Efficiency > 99.98 % (ß-ratio 5000) |
Nanjing HQY Environmental Technology Co.,Ltd, is a comprehensive company specialized in designing, manufacturing and marketing water treatment components in China. We are located in China Nanjing city since 2009.
With advanced production equipment, quality control instruments and technology, HQY offer a one-stop filter product sourcing platform and professional service for global customer. Our products are applied to bio-pharmaceutical, medical, food & beverage, microelectronic, chemistry, electronics, water treatment and laboratory application.
