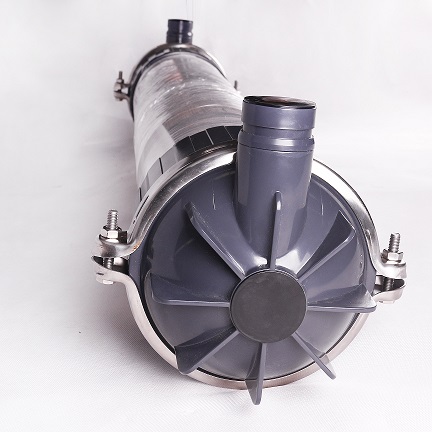

100% China made 4040 4021 8040 8060 PAN PVDF PS Ultrafiltratio Uf Membrane for water treatment
- Type£ºHollow Fiber UF Membrane
- Model£º8040 4040
- Product Description£ºPAN PVDF PS Ultrafiltratio Uf Membrane for water treatment
Introduction:
100% China made 4040 4021 8040 8060 PAN PVDF PS Ultrafiltratio Uf Membrane for water treatment
Ultra-filtration is an advanced technology to separate, purify and concentrate substance . It presents hollow capillary tube shape or hollow fiber shape, micro-pore covers tube wall densely.
Name:Hollow fiber UF membrane
Size:4", 6", 8", 9", 10", etc.
Item No.:UF90, UF160, UF200, UF200, UF250
Membrane Material:PAN/PVDF/PP/PTFE
Pore Size: 0.01 micron- 0.1 micron
After-sales Service Provided:Video technical support, Free spare parts, Online support
Usage:remove bacterias
Application:surface/ground water purification; waste water treatment
|
Module |
UF-4040 |
UF-4046 |
UF-6060 |
UF-8060 |
UF-1060 |
|
Module type |
Inside-out |
Inside-out |
Inside-out |
Inside-out |
Inside-out |
|
Shell and seal materials |
PVC,epoxy resins |
PVC,epoxy resins |
PVC,epoxy resins |
PVC,epoxy resins |
PVC,epoxy resins |
|
Membrane Material |
PAN/PVC |
PAN/PVC |
PAN/PVC |
PAN/PVC |
PAN/PVC |
|
Molecular Weight Cutoff(Dalton) |
50.000 |
50.000 |
100.000 |
100.000 |
100.000 |
|
Size (mm) |
Ø90¡Á1016 |
Ø90¡Á1155 |
Ø160¡Á1352 |
Ø200¡Á1415 |
Ø250¡Á1713 |
|
Effective membrane area |
4m2 |
4.8m2 |
15m2 |
25m2 |
52m2 |
|
Hollow fiber id/od size |
1.0mm/1.6mm |
1.0mm/1.6mm |
1.0mm/1.6mm |
1.0mm/1.6mm |
1.0mm/1.6mm |
|
Max operating pressure |
0.3Mpa |
0.3Mpa |
0.3Mpa |
0.3Mpa |
0.3Mpa |
|
Suggest operating pressure |
<0.2Mpa |
<0.2Mpa |
<0.2Mpa |
<0.2Mpa |
<0.2Mpa |
|
Max transmembrane pressure |
<0.2Mpa |
<0.2Mpa |
<0.2Mpa |
<0.2Mpa |
<0.2Mpa |
|
Backwash pressure |
0.05-0.1Mpa |
0.05-0.1Mpa |
0.05-0.1Mpa |
0.05-0.1Mpa |
0.05-0.1Mpa |
|
Produced water pollution index( SDI 25) |
<3 |
<3 |
<1 |
<3 |
<3 |
|
Initial flux |
0.8m3/h |
1.0m3/h |
4.5m3/h |
5m3/h |
9m3/h |
|
Design flux |
40-150L/m2/h |
40-150L/m2/h |
40-150L/m2/h |
40-150L/m2/h |
40-150L/m2/h |
|
Operating mode |
Cross flow ordead-end flow |
Cross flow ordead-end flow |
Cross flow ordead-end flow |
Cross flow ordead-end flow |
Cross flow ordead-end flow |
|
Bacteria removal rate |
>4log |
>4log |
>6log |
>6log |
>6log |
|
Permeate turbidity |
<0.1NTU |
<0.1NTU |
<0.1NTU |
<0.1NTU |
<0.1NTU |
|
Operating temperature |
5~40¡æ |
5~40¡æ |
5~40¡æ |
5~40¡æ |
5~40¡æ |
|
PH range |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
Hangzhou HQY Environmental Technology Co.,Ltd, is a comprehensive company specialized in designing, manufacturing and marketing water treatment components in China. We are located in China Hangzhou Xiaoshan Linpu Industrial Zone since 2009. And we registered our branch company in Hong Kong in 2015.
With advanced production equipment, quality control instruments and technology, HQY offer a one-stop filter product sourcing platform and professional service for global customer. Our products are applied to bio-pharmaceutical, medical, food & beverage, microelectronic, chemistry, electronics, water treatment and laboratory application.
