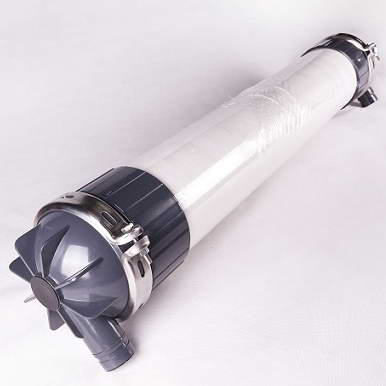

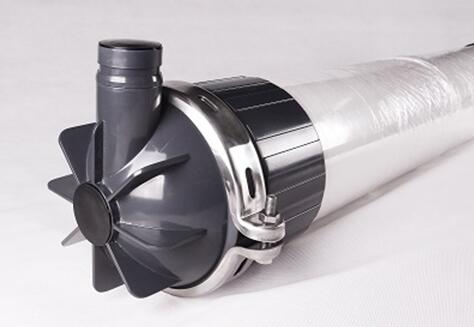

100% China made 10inch Hollow Fiber PAN UF membrane for the Industrial Wastewater Purification Plant

  • Type:Hollow Fiber UF Membrane
  • Model:UF250
  • Product Description:10inch Hollow Fiber PAN UF membrane for the Industrial Purification Plant

Introduction:


100% China made 10inch Hollow Fiber PAN UF membrane for the Industrial Wastewater Purification Plant


Ultra-filtration is an advanced technology to separate, purify and concentrate substance . It presents hollow capillary tube shape or hollow fiber shape, micro-pore covers tube wall densely.
Name:Hollow fiber UF membrane
Size:4", 6", 8", 9", 10", etc.
Item No.:UF90, UF160, UF200, UF200, UF250
Membrane Material:PAN/PVDF/PP/PTFE
Pore Size: 0.01 micron- 0.1 micron
After-sales Service Provided:Video technical support, Free spare parts, Online support
Usage:remove bacterias
Application:surface/ground water purification; waste water treatment


Module

UF-4040

UF-4046

UF-6060

UF-8060

UF-1060

Module type

Inside-out

Inside-out

Inside-out

Inside-out

Inside-out

Shell and seal materials

PVC,epoxy resins

PVC,epoxy resins

PVC,epoxy resins

PVC,epoxy resins

PVC,epoxy resins

Membrane Material

PAN/PVC

PAN/PVC

PAN/PVC

PAN/PVC

PAN/PVC

Molecular Weight Cut off(Dalton)

50.000

50.000

100.000

100.000

100.000

Size (mm)

Ø90×1016

Ø90×1155

Ø160×1352

Ø200×1415

Ø250×1713

Effective membrane area

4m2

4.8m2

15m2

25m2

52m2

Hollow fiber id/od size

1.0mm/1.6mm

1.0mm/1.6mm

1.0mm/1.6mm

1.0mm/1.6mm

1.0mm/1.6mm

Max operating pressure

0.3Mpa

0.3Mpa

0.3Mpa

0.3Mpa

0.3Mpa

Suggest operating pressure

<0.2Mpa

<0.2Mpa

<0.2Mpa

<0.2Mpa

<0.2Mpa

Max transmembrane pressure

<0.2Mpa

<0.2Mpa

<0.2Mpa

<0.2Mpa

<0.2Mpa

Backwash pressure

0.05-0.1Mpa

0.05-0.1Mpa

0.05-0.1Mpa

0.05-0.1Mpa

0.05-0.1Mpa

Produced water pollution index( SDI 25)

<3

<3

<1

<3

<3

Initial flux

0.8m3/h

1.0m3/h

4.5m3/h

5m3/h

9m3/h

Design flux

40-150L/m2/h

40-150L/m2/h

40-150L/m2/h

40-150L/m2/h

40-150L/m2/h

Operating mode

Cross flow or dead-end flow

Cross flowordead-end flow

Cross flow or dead-end flow

Cross flowordead-end flow

Cross flowordead-endflow

Bacteria removal rate

>4log

>4log

>6log

>6log

>6log

Permeate turbidity

<0.1NTU

<0.1NTU

<0.1NTU

<0.1NTU

<0.1NTU

Operating temperature

5~40℃

5~40℃

5~40℃

5~40℃

5~40℃

PH range

2~10

2~10

2~10

2~10

2~10


Hangzhou HQY Environmental Technology Co.,Ltd, is a comprehensive company specialized in designing, manufacturing and marketing water treatment components in China. We are located in China Hangzhou Xiaoshan Linpu Industrial Zone since 2009. And we registered our branch company in Hong Kong in 2015.

With advanced production equipment, quality control instruments and technology, HQY offer a one-stop filter product sourcing platform and professional service for global customer. Our products are applied to bio-pharmaceutical, medical, food & beverage, microelectronic, chemistry, electronics, water treatment and laboratory application.
